Ball Mill

The Ball mill could wet grind and dry grind many kinds of minerals and grindable material according to different ore discharge methods there are grid type and overflow type ball mill.

Raw Materials:

Limestone, calcite, coal ash, kaolin, calcium carbonate, gangue, gypsum, grain slag, superfine slag powder, coal dust, bentonite, barite, marble, talc, refractory material

Application:

Cement, silicate product, new building materials, refractory material, chemical fertilizer, nonferrous and ferrous metal beneficiation and glass ceramic industries.

Get Price Talk Online

Introduction

The Ball mill could wet grind and dry grind many kinds of minerals and grindable material according to different ore discharge methods there are grid type and overflow type ball mill.

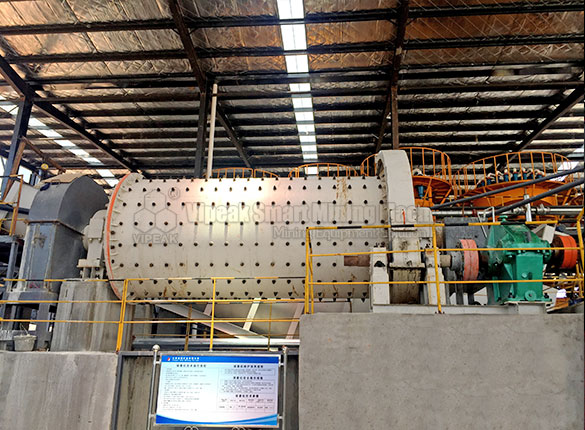

This machine is barrel horizontal type rotation device, outer gear transmission, and two bins.

Raw material is taken to first bin from feeding port through hollow shaft, . After coarse grinding process in the first bin, material will be delivered to the secondary bin.

There are plane liner and steel ball to further grind the material. Powder material will be discharged from discharging grate plate and the grinding process is completed.
product introduction

Product Advantages

  • 01

    High manganese steel plate

    • High manganese steel plate is more wear-resisting and it has longer service life.

  • 02

    Wheel gear

    • Adopts unique pinion drives rack wheel rotating.

  • 03

    Reduction box

    • High quality and national standard reduction box.

  • 04

    Discharge port

    • Reasonable discharge port design de-ironing separator could be set according to clients’s requirement.

Product Specification

Model
 Ball Weight
（t）		 Feeding Size
（mm）		 Output Size
（mm）		 Capacity
（t/h）		 Power
（kw）		 Weight
（t）
Φ900×3000 2.4 ≤25 0.075~0.89 0.8-2.5 22 5.3
Φ1200×3000 4.5 ≤25 0.074~0.4 1.6-3 37 12.1
Φ1200×4500 7 ≤25 0.074~0.4 1.83-3.9 55 13.1
Φ1500×3000 7.5 ≤25 0.074~0.4 2.8-4 75 14.8
Φ1500×4500 11 ≤25 0.074~0.4 4.8-7 110 19.9
Φ1500×5700 14 ≤25 0.074~0.4 5-8 130 23.4
Φ1500×7000 17 ≤25 0.074~0.4 6-8 155 27.5
Φ1830×3000 11 ≤25 0.074~0.4 4.5-10.5 130 26.6
Φ1830×4500 17 ≤25 0.074~0.4 6.8-11.5 155 30.4
Φ1830×6400 24 ≤25 0.074~0.4 7-12 210 32.3
Φ1830×7000 26 ≤25 0.074~0.4 7.8-13.8 245 34.2
Φ2100×3000 15 ≤25 0.074~0.4 5.8-14 210 32.3
Φ2100×4500 23 ≤25 0.074~0.4 9.5-18 245 40
Φ2400×3000 20 ≤25 0.074~0.4 7.8-18 245 51.3
Φ2400×4500 30 ≤25 0.074~0.4 13.7-28 380 63.7
Φ2700×4000 34 ≤25 0.074~0.4 15-28 475 89
Φ2700×4500 39 ≤25 0.074~0.4 16.5-36 475 97
