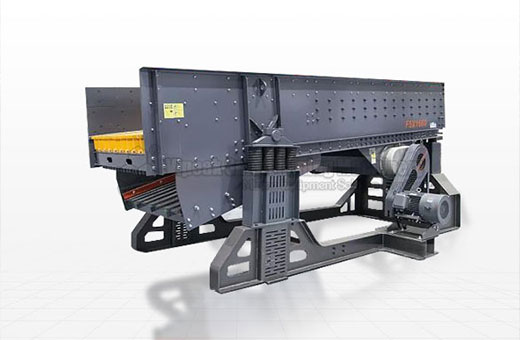

F5X Series Vibrating Feeder

F5X series vibrating feeder developed by Vipeak is in line with international leading technology, adopts advanced design concepts and manufacturing process, and the vibration intensity is up to 4.5g, which is 30% higher than that of the traditional vibrating feeder.

Raw Materials:

Limestone, granite, marble, basalt, iron ore, river pebbles, shale, bluestone, coal, pebbles, construction waste

Application:

Crushing and screening equipment in metallurgy, coal mines, beneficiation, building materials, chemicals, abrasives and other industries

Get Price Talk Online

Introduction

F5X is developed on the basis of international advanced design concept and manufacturing process. It has a vibration intensity of 4.5g, 30% higher than traditional type and has larger processing capacity under same circumstances.

It has strong chute structure which can bear high hopper pressure, heavy impact load and meet coarse material feeding requirements.It can meet the harsh application requirements: high performance, heavy duty, frequent start and stop, frequency conversion.

Its spare parts have high interchangeability and lubrication maintenance duration can be 1500 hours.Rod structure adopts a combination welding of NM wear-resistant steel and ordinary steel, which has a long service life, high screen efficiency, and convenient installation and adjustment. F5X series have four configuration of rod and grizzly bar to meet different application demands.
product introduction

Product Advantages

  • 01

    Super-heavy Chute Structure

    • It has strong chute structure, which can bear higher hopper pressure, heavy impact load and meet coarse material feeding requirements.

  • 02

    Strong Vibration Intensity, Large Operation Capacity

    • F5X is developed on the basis of international advanced design concepts and manufacturing processes. It has a vibration intensity of 4.5G, 30% higher than traditional type and has larger processing capacity under same circumstances.

  • 03

    With FV Super Vibrator, Efficient, Reliable and Convenient

    • It can meet the harsh application requirements: high performance, heavy duty, frequent start and stop, frequency conversion. Its spares have high interchangeability and lubrication maintenance duration can be 1500 hours.

  • 04

    Adequate Rods, High-Efficiency of Pre-Screening Function

    • Rod structure adopts a combination of NM wear-resistant steel and ordinary steel, which has a long service life, high screen efficiency, and convenient installation and adjustment.

Product Specification


Model Chute Size Rod Length Maximum Feeding Capacity Power
F5X1045(M/C) 1000×4500 1×1200 700 500 15
F5X1345(M/C) 1300×4500 1×1200 900 750 22
F5X1360(S) 1300×6000 2×1200 900 750 30
F5X1645(C) 1600×4500 1×1200 1200 950 22
F5X1660(S) 1600×6000 2×1200 1200 950 30
F5X2060 2000×6000 2×1200 1500 1600 45
F5X1354(G) 1300×5000 4×900 900 500 22
F5X1654(G) 1600×5000 4×900 1200 800 30
F5X2054(G) 2000×5000 4×900 1500 1200 45
