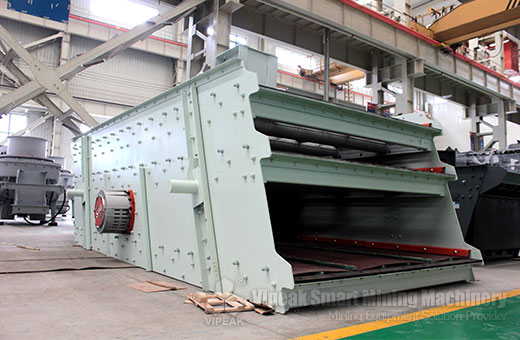

S5X Vibrating Screen

S5X Vibrating Screen is a type of new type screen machine with a elliptical vibration. It’s designed for quarry to process stone material can also be applied in coal dressing beneficiation building materials electric power and chemical industry. It is also of reliable structure strong exciting force high screening efficiency low vibrating noise long durability convenient maintenance safe operation etc. and uses eccentric block to produce strong exciting force.

Raw Materials:

granite, marble, basalt, iron ore, cobble, shale, bluestone, coal, cobblestone, construction waste

Application:

mining, building materials, transportation, energy, chemical and other industries

Get Price Talk Online

Introduction

S5X VIBRATING SCREEN is a type of new type screen machine, with a elliptical vibration. It’s designed for quarry to process stone material, can also be applied in coal dressing, beneficiation, building materials, electric power and chemical industry.

It is also of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc., and uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts.

So they have the features of simple structure and easy maintenance. It adopts tire clutch with capability of flexible connection and stable operation, structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise. It’s applied in mining, building materials, transportation, energy, chemical industry to screen material, and it’s the ideal machine in crushing production line.
product introduction

Product Advantages

  • 01

    Rubber Isolation Spring

    • Longer service life little noise stable resonance region.

  • 02

    High Quality Screen

    • Longer service life hard to plug hole.

  • 03

    Motor

    • High quality motor makes sure stable working of machine.

  • 04

    Eccentric Shaft Vibration Exciter

    • Main machine is under protection easy to be replaced and maintenance costs is reduced.

Product Specification

Model Screen size(mm) Layers Incline Vibrating frequency（RPM） Double Amplitude (mm) Motor Power(kw) Capacity（t/h） Screen mesh(mm)
S5X1230- 2 1200×3000 2 18（18-25） 800~900 7-12 11 25-200 2-70
S5X1545- 2 1500×4500 2 18（18-25） 800~900 7-12 11 45-380 2-70
S5X1545- 3 3 18（18-25） 800~900 7-12 15 45-380 2-70
S5X1845- 2 1800×4500 2 18（18-25） 800~900 7-12 15 60-450 2-70
S5X1845- 3 3 18（18-25） 800~900 7-12 22 60-450 2-70
S5X1860- 2 1800×6000 2 18（18-25） 800~900 7-10 15 75-600 2-70
S5X1860- 3 3 18（18-25） 800~900 7-12 30 75-600 2-70
S5X1860- 4 4 18（18-25） 800~900 7-12 37 75-600 2-70
S5X2160- 2 2100×6000 2 18（18-25） 800~900 7-12 22 85-700 2-70
S5X2160- 3 3 18（18-25） 800~900 7-12 30 85-700 2-70
S5X2160- 4 4 18（18-25） 800~900 7-11 37 85-700 2-70
S5X2460- 2 2400×6000 2 18（18-25） 800~900 7-12 22 100-800 2-70
S5X2460- 3 3 18（18-25） 800~900 7-11 30 100-800 2-70
S5X2460- 4 4 18（18-25） 800~900 7-10 37 100-800 2-70
S5X2760- 2 2700×6000 2 18（18-25） 800~900 7-12 30 120-900 2-70
S5X2760- 3 3 18（18-25） 800~900 7-11 37 120-900 2-70
S5X3072- 2 3000×7200 2 20（20-25） 800~900 7-11 37 150-1200 2-70
S5X3075- 2T 3000×7500 2 20（20-25） 800~900 7-12 2x22 180-1800 2-150
S5X3075- 3T 3000×7500 3 20（20-25） 800~900 7-12 2x30 180-1800 2-150
S5X3680- 2T 3600×8000 3 21 800~900 7-12 2x30 225-2250 2-150
S5X3680- 3T 3600×8000 3 20 800~900 7-12 2x37 225-2250 2-150

Any change of technical data shall not be advised additionally,The weight and dimensions shall be subject to the real object.
